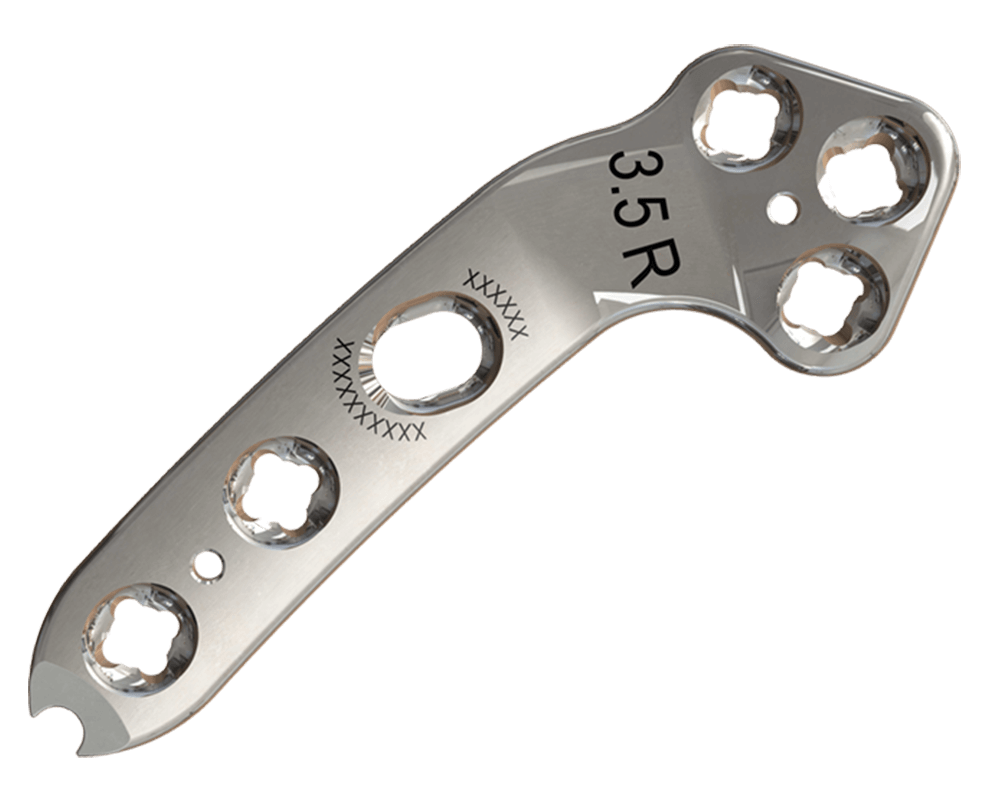

TPLO Plate
Used to stabilize the knee after cranial cruciate ligament (CCL) tears, our TPLO plates are optimized for ideal fitment and feature polyaxial locking technology fully compatible with AO-style implant systems utilizing double threaded locking screws.
1 |
Contour optimized for ideal fitment |
2 |
Screw Angle Restriction (SAR) technology prevents inadvertent screw positioning |
3 |
Offset geometry combined with a curved tail provides optimal screw placement |
4 |
Angled compression hole for uniform osteotomy gap compression |
5 |
Retractor notch limits incision |
6 |
Polyaxial locking for intraoperative versatility |
7 |
K-wire holes for temporary fixation |
8 |
Matte finish reduces glare |
9 |
Low profile for decreased soft tissue irritation |
10 |
Scalloped underside to minimize contact stress and promote healing |
| 203500 | Elevation TPLO Plate, 3.5mm x 62mm, 6 Holes, Left |
| 203501 | Elevation TPLO Plate, 3.5mm x 62mm, 6 Holes, Right |
| 203502 | Elevation TPLO Plate, 3.5mm Small x 53mm, 6 Holes, Left |
| 203503 | Elevation TPLO Plate, 3.5mm Small x 53mm, 6 Holes, Right |
| 203504 | Elevation TPLO Plate, 3.5mm Broad x 78mm, 8 Holes, Left |
| 203505 | Elevation TPLO Plate, 3.5mm Broad x 78mm, 8 Holes, Right |
| 203506 | Elevation TPLO Plate, 3.5mm Jumbo x 88mm, 10 Holes, Left |
| 203507 | Elevation TPLO Plate, 3.5mm Jumbo x 88mm, 10 Holes, Right |
| 202700 | Elevation TPLO Plate, 2.7mm x 44mm, 6 Holes, Left |
| 202701 | Elevation TPLO Plate, 2.7mm x 44mm, 6 Holes, Right |
| 202400 | Elevation TPLO Plate, 2.4mm x 33mm, 6 Holes, Left |
| 202401 | Elevation TPLO Plate, 2.4mm x 33mm, 6 Holes, Right |
| 202000 | Elevation TPLO Plate, 2.0mm x 28mm, 6 Holes, Left |
| 202001 | Elevation TPLO Plate, 2.0mm x 28mm, 6 Holes, Right |
The InVictos TPLO System delivers dependable, repeatable surgical outcomes with superior versatility and uncompromising material quality. Built to perform. Built to last.
