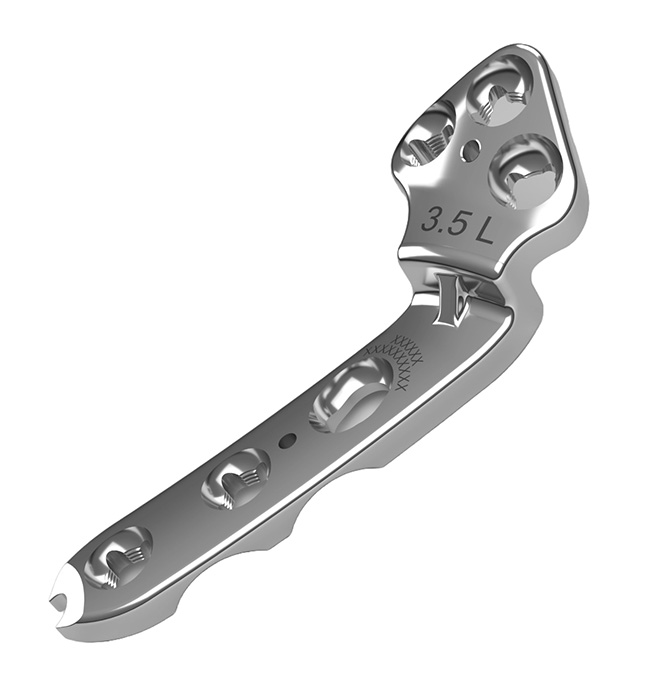

TPLO Plate
Building on the precise engineering of our Elevations plates, the offset plate is designed to provide medial tibial plateau translation through a precise step/offset design. This creates controlled realignment of the extensor mechanism for optimal patellar tracking and joint stability, allowing veterinarians to treat concurrent CCL rupture and MPL in one surgery.

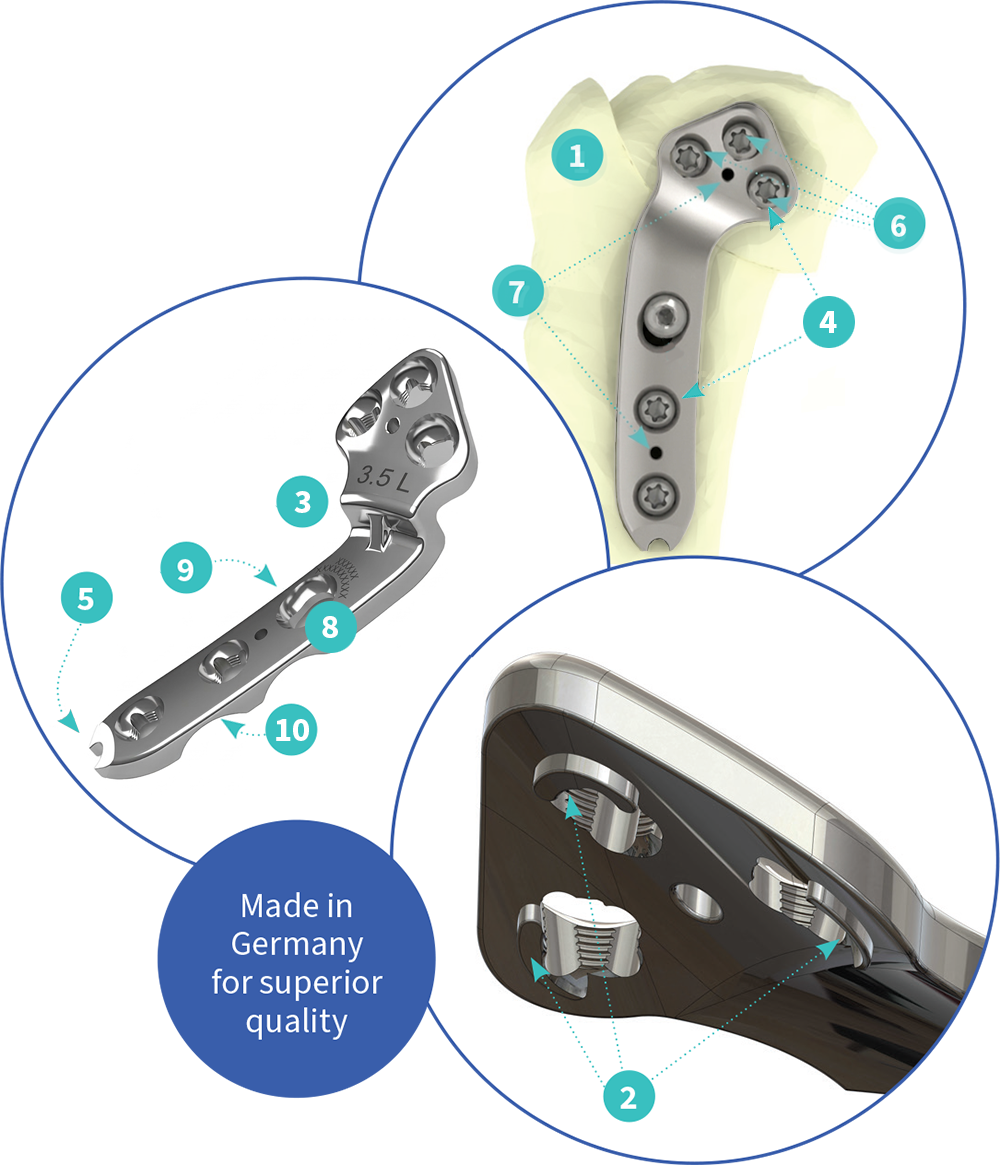

1 |
Pre-contoured anatomic design to ensure ideal fitment |
2 |
Screw Angle Restriction (SAR) technology prevents inadvertent screw positioning |
3 |
Precise step/offset geometry for optimal patellar tracking and joint stability |
4 |
Proximal and distal locking holes for secure fixation with reduced soft-tissue irritation |
5 |
Retractor notch limits incision |
6 |
Polyaxial screw hole design for intraoperative versatility (accepts InVictos lateral suture screw for lateral brace applications) |
7 |
K-wire holes for temporary fixation and precise intraoperative positioning |
8 |
Matte finish reduces glare |
9 |
Low-profile contours to minimize subcutaneous prominence |
10 |
Scalloped underside to minimize contact stress and promote healing |
| 343352 | 3.5mm Small TPLO Left- 4mm offset |
| 343353 | 3.5mm Small TPLO Right- 4mm offset |
| 343350 | 3.5mm TPLO Left- 4.5mm offset |
| 343351 | 3.5mm TPLO Right- 4.5mm offset |
| 343354 | 3.5mm Broad TPLO Left- 5mm offset |
| 343355 | 3.5mm Broad TPLO Right- 5mm offset |
| 343270 | 2.7mm TPLO Left- 3.5mm offset |
| 343271 | 2.7mm TPLO Right- 3.5mm offset |
| 343240 | 2.4mm TPLO Left- 3mm offset |
| 343241 | 2.4mm TPLO Right- 3mm offset |
| 343200 | 2.0mm TPLO Left- 2mm offset |
| 343201 | 2.0mm TPLO Right- 2mm offset |
The InVictos TPLO System delivers dependable, repeatable surgical outcomes with superior versatility and uncompromising material quality. Built to perform. Built to last.
